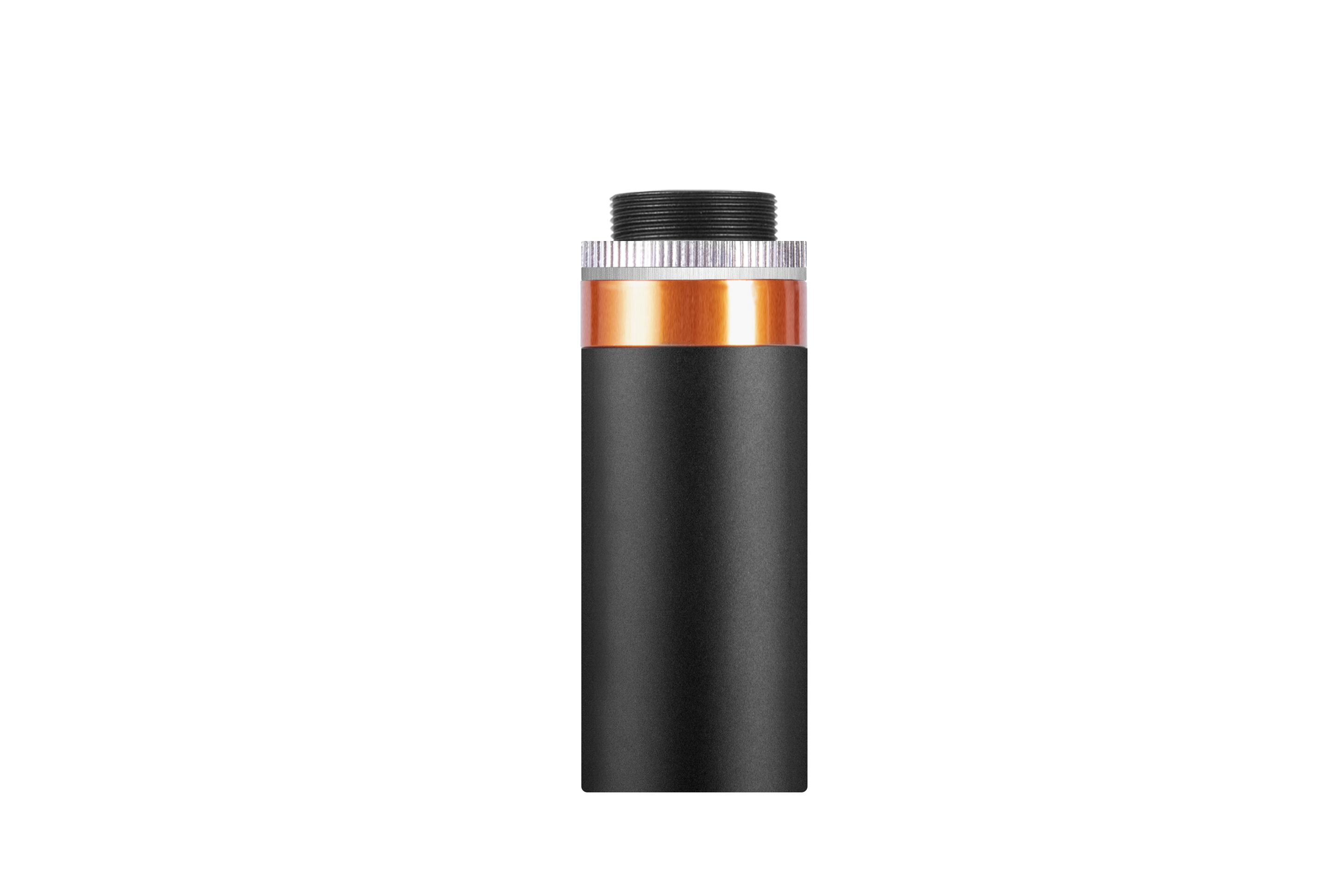

SUT065 Series
At present, telecentric lenses are widely used for inspection and measurement in the field of R&D, medical, security, measurement, automated inspection, etc. SUT065 series telecentric lenses have two types of products, lenses with high resolution and lenses with deep DOF, satisfying different technical requirements. The lens mount is standard C-mount and the working distance remains at 65mm under different magnifications.
lVarious optical magnifications, satisfying different requirements on field of view
lOptions between high resolution and deep DOF are available, satisfying different technical requirements
lWD=65mm
lDistortion: <0.05%, telecentricity: <0.1°
lTelecentric design, deep DOF and high resolution
lMulti-layer coating, high transmittance
lHigh cost performance, suitable for systems used for batch testing and inspection
lCustomized aperture is available
Data
Lenses with High Resolution
|
Model |
Magnification |
Max. FOV（mm） |
WD（mm） |
Object Side Resolution（μm） |
DOF（mm） |
Effective F number |
Actural Measured Telecentricity（°） |
Actural Measured Distortion（%） |
2/3" |
Lens Mount |
||
|
H |
V |
D |
||||||||||
|
9.2 |
6.9 |
11.5 |
||||||||||
|
SUT1105065C |
0.5 |
23.00 |
65 |
12.078 |
1.00 |
9 |
＜0.1 |
＜0.05 |
18.4 |
13.80 |
23.00 |
C |
|
SUT1108065C |
0.8 |
14.37 |
65 |
6.710 |
6.70 |
8 |
＜0.1 |
＜0.05 |
11.5 |
8.63 |
14.37 |
C |
|
SUT1110065C |
1.0 |
11.50 |
65 |
23.49 |
7.381 |
11 |
＜0.1 |
＜0.05 |
9.2 |
6.90 |
11.50 |
C |
|
SUT1120065C |
2.0 |
5.75 |
65 |
30.20 |
4.362 |
13 |
＜0.02 |
＜0.04 |
4.6 |
3.45 |
5.75 |
C |
|
Model |
Magnification |
Max. FOV（mm） |
WD（mm） |
Object Side Resolution（μm） |
DOF（mm） |
Effective F number |
Actural Measured Telecentricity（°） |
Actural Measured Distortion（%） |
1.1" |
Lens Mount |
||
|
H |
V |
D |
||||||||||
|
14.08 |
10.56 |
17.6 |
||||||||||
|
SUTZ1740065C |
4 |
4.40 |
65 |
4.362 |
0.13 |
26 |
＜0.05 |
＜0.05 |
3.52 |
2.64 |
4.4 |
C |
|
Model |
Magnification |
Max. FOV（mm） |
WD（mm） |
Object Side Resolution（μm） |
DOF（mm） |
Effective F number |
Actural Measured Telecentricity（°） |
Actural Measured Distortion（%） |
1.1" |
Lens Mount |
||
|
H |
V |
D |
||||||||||
|
14.8 |
11.1 |
18.5 |
||||||||||
|
SUTZ1860065C |
6 |
3.08 |
65 |
4.36 |
0.09 |
39 |
＜0.05 |
＜0.05 |
2.46 |
1.85 |
3.08 |
C |
|
Model |
Magnification |
Max. FOV（mm） |
WD（mm） |
Object Side Resolution（μm） |
DOF（mm） |
Effective F number |
Actural Measured Telecentricity（°） |
Actural Measured Distortion（%） |
28mm |
Lens Mount |
||
|
H |
V |
D |
||||||||||
|
22.4 |
17.1 |
28 |
||||||||||
|
SUTZ2860065F |
6 |
4.67 |
65 |
4.36 |
0.09 |
39 |
＜0.05 |
＜0.05 |
3.73 |
2.8 |
4.67 |
F |
Lenses with Deep DOF
|
Model |
Magnification |
Max. FOV（mm） |
WD（mm） |
Object Side Resolution（μm） |
DOF（mm） |
Effective F number |
Actural Measured Telecentricity（°） |
Actural Measured Distortion（%） |
2/3" |
Lens Mount |
||
|
H |
V |
D |
||||||||||
|
9.2 |
6.9 |
11.5 |
||||||||||
|
SUT1105065C-D |
0.5 |
23.00 |
65 |
24.156 |
5.76 |
18 |
＜0.1 |
＜0.05 |
18.4 |
13.80 |
23.00 |
C |
|
SUT1108065C-D |
0.8 |
14.37 |
65 |
13.420 |
2.00 |
18 |
＜0.1 |
＜0.05 |
11.5 |
8.63 |
14.37 |
C |
|
SUT1110065C-D |
1.0 |
11.50 |
65 |
13.420 |
1.60 |
18 |
＜0.1 |
＜0.05 |
9.2 |
6.90 |
11.50 |
C |
|
SUT1120065C-D |
2.0 |
5.75 |
65 |
6.710 |
0.40 |
18 |
＜0.035 |
＜0.02 |
4.6 |
3.45 |
5.75 |
C |
